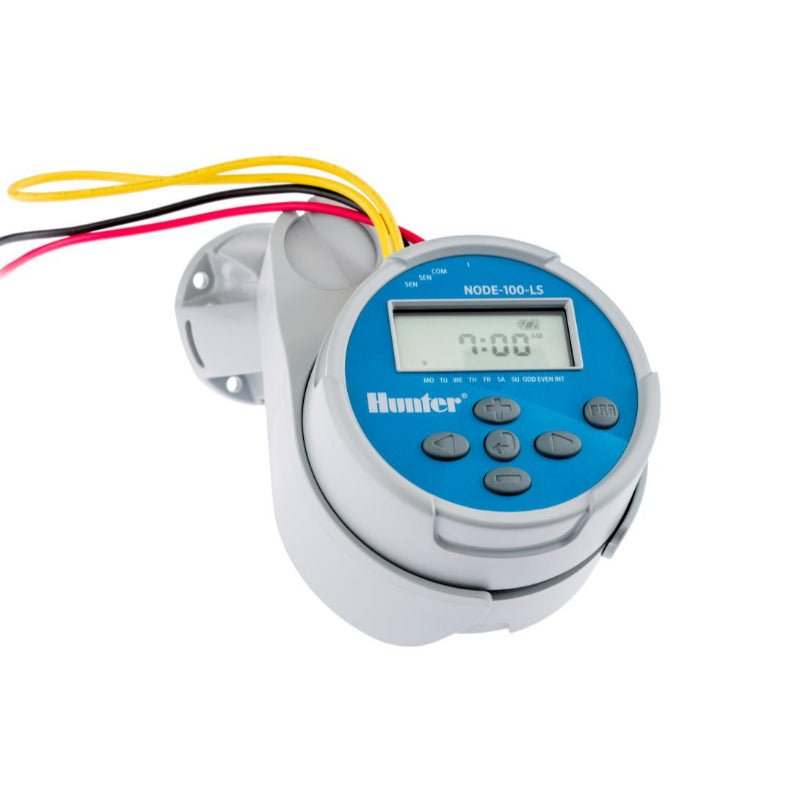

Hunter NODE 1 Station Battery Controller with DC Solenoid (NODE-100)

The Hunter NODE battery controller for isolated sites and power-restricted areas. The Hunter NODE mounts to a valve's solenoid quickly and easily, and without screws, drills, or additional wires. The unit's solid construction and fully waterproof exterior ensure it can handle the harsh environment of any valve box. The Hunter NODE is powered by one or two 9V alkaline batteries and provides standard or extended power throughout the season. Along with exceptional reliability, the Hunter NODE features an easy-to-program LCD screen, the ability to control a Pump Master Valve, and is faster to program with Hunter NODE's simple wizard with 3 programs and 4 start times per program. The array of programming options and rugged reliability make the NODE a compact, but powerful irrigation controller with the flexibility of battery or solar power.

KEY BENEFITS

• Number of stations 1
• Battery-operated controller for automatic irrigation without AC power
• Battery-life indicator for battery replacement
• Waterproof enclosure seal protects against water ingress
• 3 flexible programs with 4 start times each and up to 6-hour run times
• Suspend irrigation up to 99 days during the off-season
• Easy Retrievememory backs up the full irrigation schedule if ever changed
• Seasonal adjustment for quicker schedule adjustments without changing run times
• Solar panel provides maintenance-free operation
• Mounts to Hunter solenoids, pipes, flat surfaces, or inside the valve box

Operating Specifications

• One or two 9V alkaline batteries or 1800 mAh solar panels with charging cell
• Operates Hunter DC-latching solenoids (P/N 458200)
• 100' maximum wire runs, 18 AWG wire only
• Station output: 9“11 VDC
• P/MV output: 9“11 VDC (multi-station models)
• Sensor inputs: 2 (wired soil plus wired rain, freeze, or wind only)
• Approvals: IP68 (submersible), UL, cUL, FCC, CE, RCM, ISED
• Warranty period: 2 years
