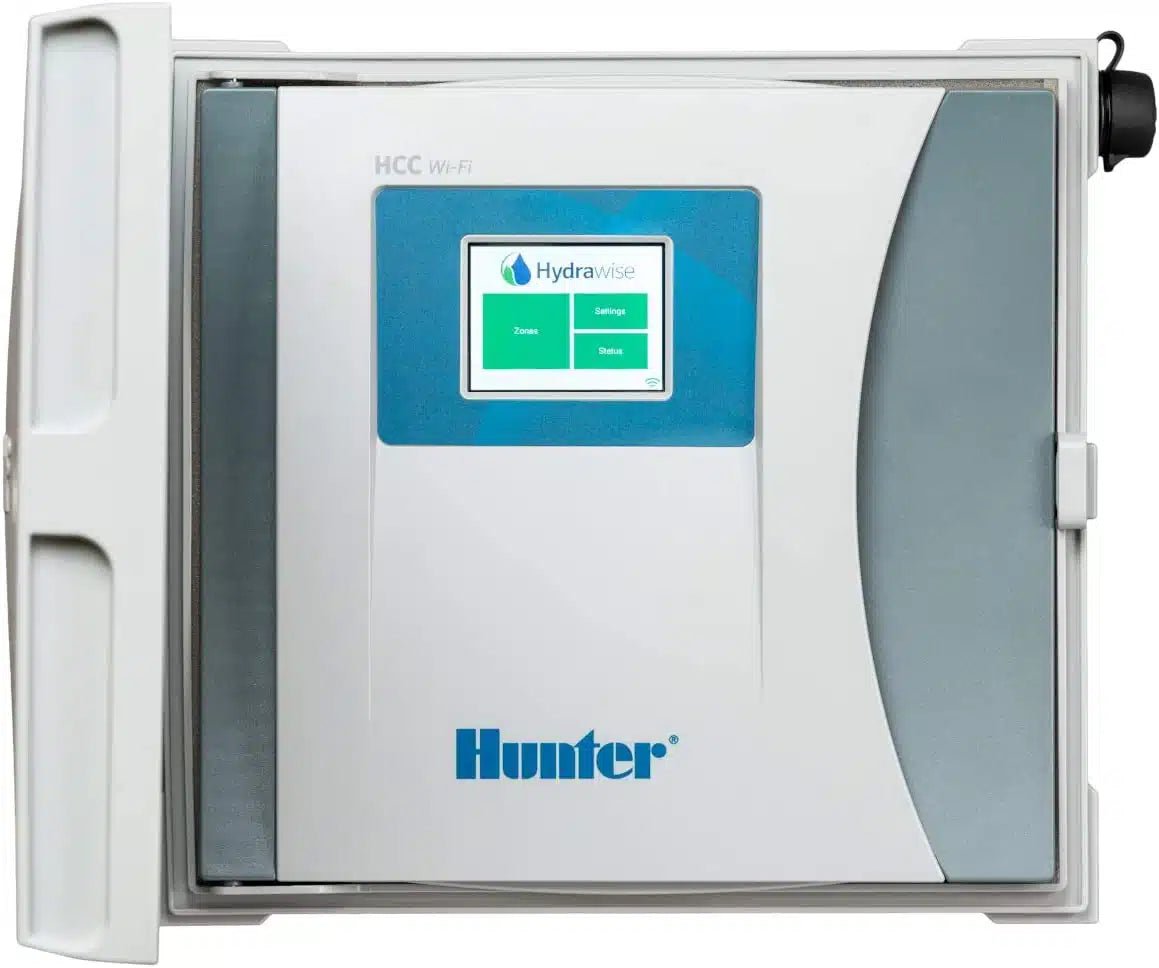

Hunter Hydrawise HCC HCC-800-PL 8 Station (Up to 38) Wi-Fi Controller, Plastic | HCC800PL

The next-generation HCC Controller (HCC-800-PL) brings the powerful cloud-based irrigation management capabilities of the industry-leading Hydrawise Platform to high-end residential, commercial, and public-sector projects.

The next-generation Hydrawise HCC controller brings the powerful Wi-Fi-based irrigation management capabilities of the industry-leading Hydrawiseplatform to high-end residential, commercial, and public-sector projects. The HCC provides a range of convenient features to monitor larger projects ” all with the simple click of a button.

The modular Hydrawise HCC Controller provides a range of convenient features to monitor larger projects with up to 54 stations ” all with the simple click of a button. A full graphical touchscreen interface allows for programming and manual operation at the controller, with or without Wi-Fi connectivity. For maximum irrigation design flexibility, the controller also offers two-wire compatibility with the Hunter EZ Decoder System (EZDS).

The Hydrawise HCC combines the robust features of the popular Hunter ICC2 controller with automatic, weather-based daily adjustments of Hydrawise programming to create a smart and economical solution for commercial landscape management. Hydrawise HCC can control up to 54 stations* and effectively operate any two stations simultaneously. The controller convenient modular design allows for rapid expandability with the same 4-, 8-, and 22-station output modules as the Hunter ICC2. Engineered with a prewired SmartPort, Hydrawise HCC is also compatible with Hunter ROAM and ROAM XL remotes, allowing for fast and reliable manual operation in the field from long-range distances without the need for a smartphone.

With a built-in milliamp sensor, troubleshooting faulty wires is a breeze. Easily install an HC Flow Meter to accurately monitor flow, prevent wasted water, and avoid damaged landscapes.

* Expandable in 4-, 8-, 22-, and 54-station increments

KEY BENEFITS

• HCC Controller Station Options:
  • Conventional: 8 to 38 (plastic), 8 to 54 (metal and pedestal)*
  • With two-wire EZDS: up to 54 (all enclosure options)
• The standard programming option allows for 6 independent irrigation programs and 6 start times per program
• The advanced programming option provides station-based programming with up to 6 total start times available
• Any 2 programs or stations can operate simultaneously, providing more efficient watering
• 2 sensor inputs available for use with any Clik sensors and HC Flow Meter
• 1 P/MV output for pump start relay and master valve activation
• Wi-Fi enabled for quick connection to Hydrawise software
• 31/4 full-color touchscreen display for simple programming at the control panel
• Built-in milliamp sensor for wire fault detection and alerts

OPERATING SPECIFICATIONS

• Transformer input: 120/230 VAC
• Transformer output (24 VAC): 1.4 A
• Station output (24 VAC): 0.56 A
• P/MV output (24 VAC): 0.56 A
• 2.4 GHz (only) Wi-Fi router compatible, 802.11 b/g/n 20 MHz
• Supported security protocols: WPA/WPA2 Personal (only), TLS, SSL
• Approvals: Plastic Wall Mount IP55 (outdoor), Plastic Pedestal IP24 (outdoor), UL, cUL, FCC, CE, RCM
• Warranty period: 5 years
