FX Luminaire VC ZD White Down Light (VC-ZD-1LED-FW)
FX Luminaire VC ZD White Down Light (VC-ZD-1LED-FW)
SKU:VC-ZD-1LED-FW
Couldn't load pickup availability
For contractors and dealers: we're here for compatibility checks, substitutions, and large mixed orders whenever we can support them fairly.
Need manual review or a coordination call? Message us—we work within thin margins so some setups are scoped case-by-case.
- Built for contractor buying
- Fast shipping on in-stock
- Product & project help

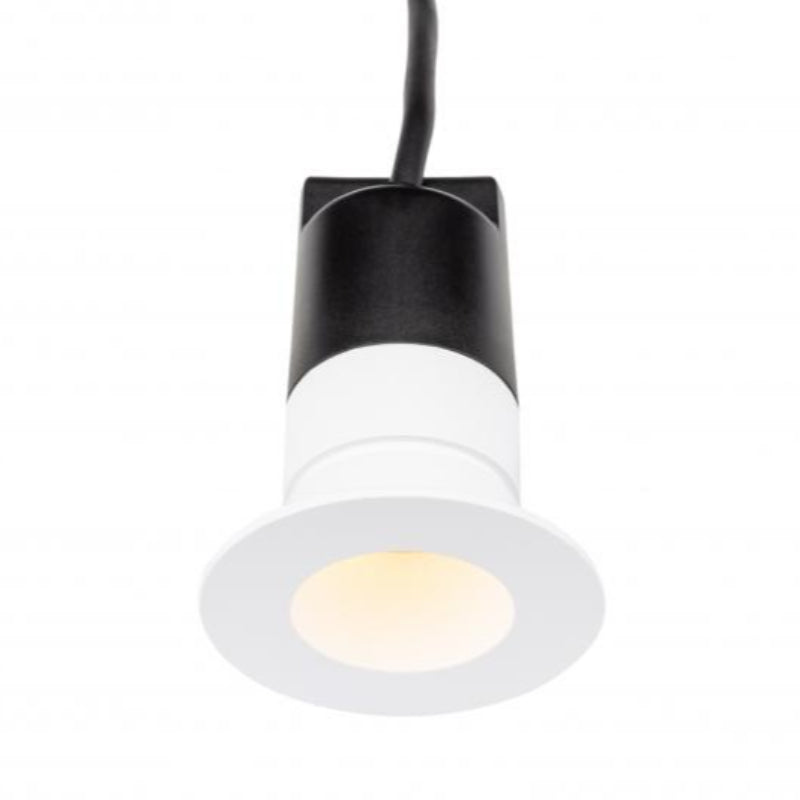

The FX Luminaire VC is a sleek 2.4″ down light featuring Luxor ZD zoning and dimming capabilities — ideal for ceiling applications where a tidy, compact fixture is needed.
The FX Luminaire VC Designer Down Light is crafted for discreet ceiling or soffit installation, providing architectural-grade lighting in a small design. Constructed from marine-grade aluminum with a low-glare powder-coated surface, it fits effortlessly into ceilings while enduring outdoor elements.
This model is compatible with Luxor® ZD (zoning & dimming) controls but does not offer full-color (ZDC) capabilities.
Key Features:
- Compact size: 2.4″ diameter, 3.3″ height
- Input voltage: 10–15 V (VAC/VDC)
- Phase and PWM dimmable via Luxor ZD
- Built-in LED module (1 LED) with approximately 156 lumens output
- Efficacy around 56 lm/W, CRI 80+
- Minimum rated lifespan: ~55,000 hours
- Robust marine-grade aluminum casing with tempered-glass lens
- Perfect for ceiling & soffit setups where recessed down lights are not feasible
Applications: Suitable for small overhangs, soffits, patios, entryways, and architectural lighting where a low-profile fixture is crucial.
Share
Contractor Buying Checklist
Contractor Buying Checklist
- Confirm fixture type and beam angle for the application.
- Verify transformer capacity for full load plus expansion.
- Match wire gauge and run length to reduce voltage drop.
- Check mounting hardware and connector compatibility.
- For big or mixed orders, use the contact form—quotes depend on stock and margin.
